Bulk Bag Handling
Filling, lifting, discharging, and conveying of FIBCs integrated into your process line.
Systems for filling, lifting, discharging, and conveying bulk bags (FIBCs). Integrated with conveyor lines for efficient large-volume packaging and raw material intake directly from 1-tonne bags.

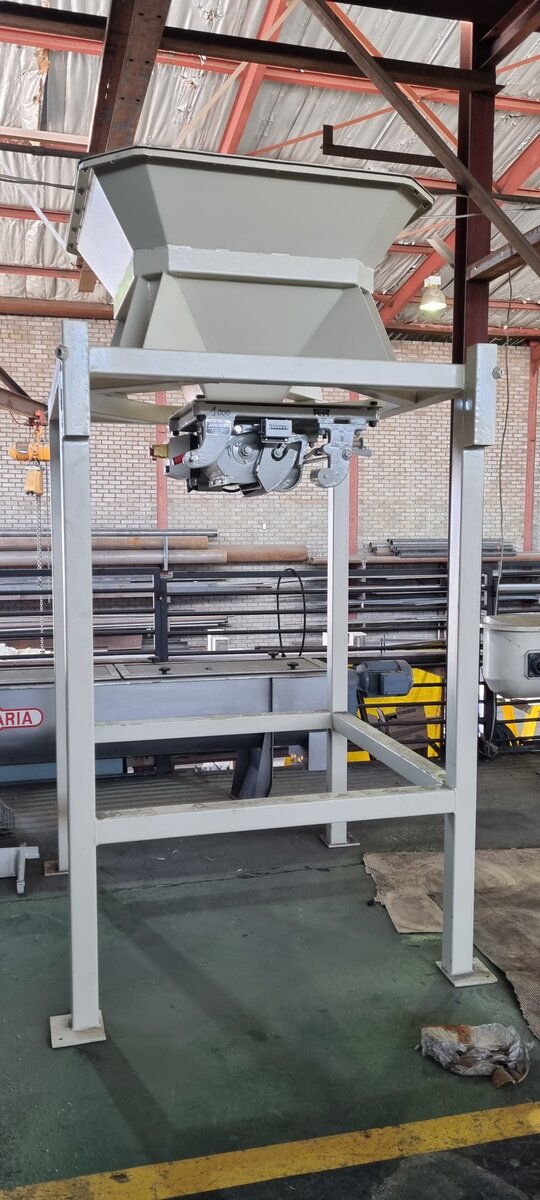

Bulk bag filling station with gross-weight scale and automatic spout connection
01 / 06Overview

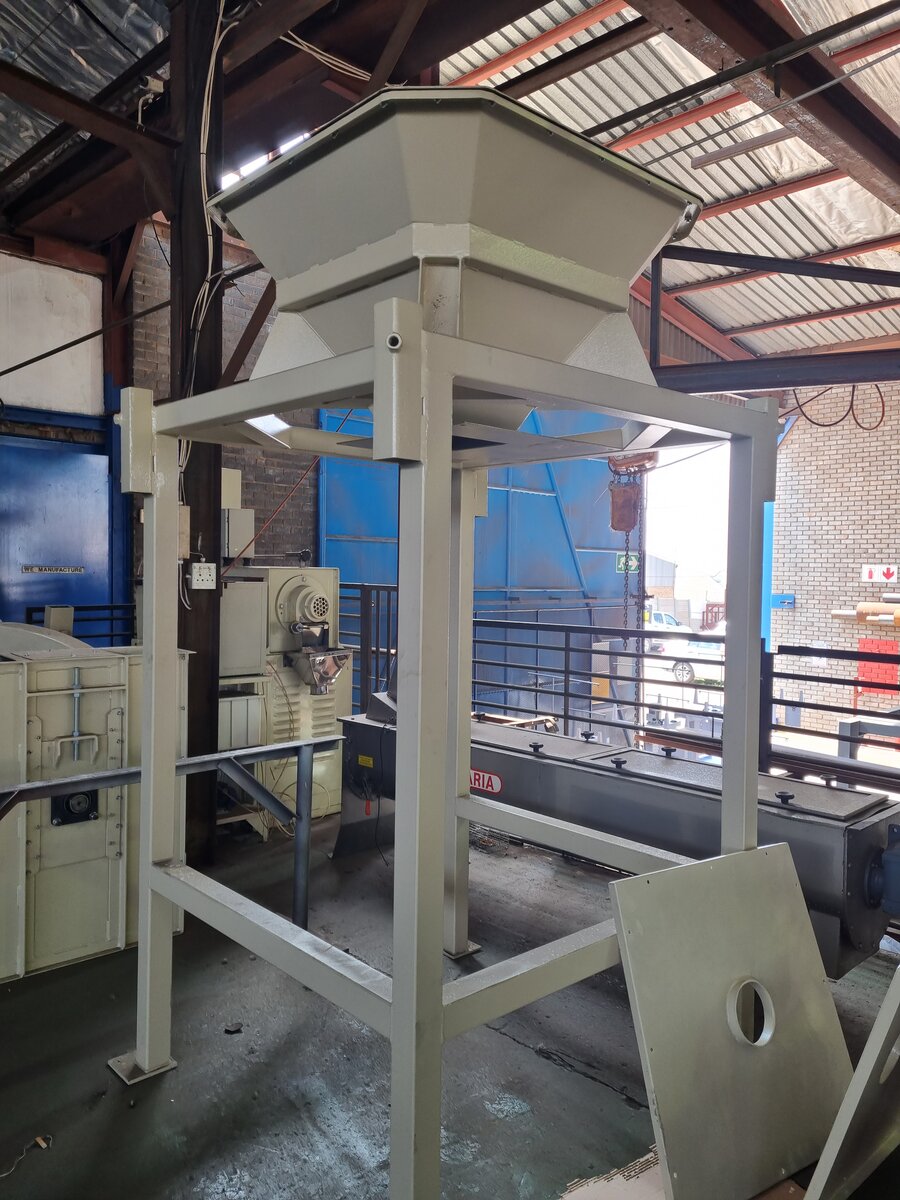

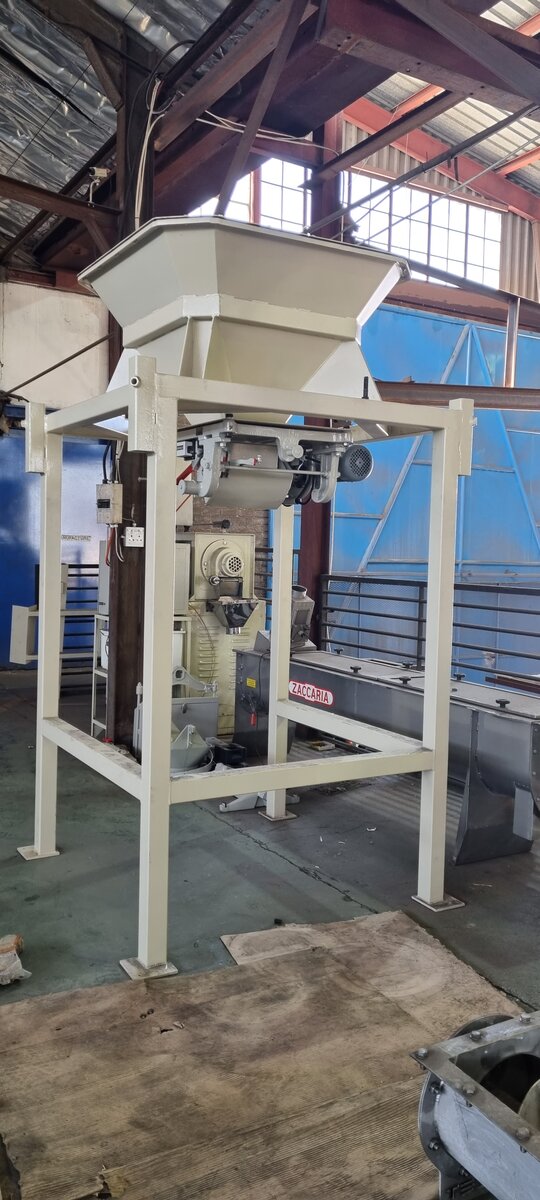

Bulk bags (FIBCs: Flexible Intermediate Bulk Containers) are 500 kg to 1 500 kg capacity woven polypropylene bags widely used for transport and storage of grain, seed, flour, and agricultural ingredients. Facet Engineering designs and supplies the complete handling systems around bulk bags: filling stations with net-weight or gross-weight scales and automatic spout connectors; discharge stations with bag-lifting frames, vibrating base plates, and dust-tight spout connections; and the conveying integration to move filled bags to storage or despatch. Both manual and semi-automated configurations are available depending on the required handling rate and available labour.
Bulk bags (FIBCs: Flexible Intermediate Bulk Containers) are 500 kg to 1 500 kg capacity woven polypropylene bags widely used for transport and storage of grain, seed, flour, and agricultural ingredients. Facet Engineering designs and supplies the complete handling systems around bulk bags: filling stations with net-weight or gross-weight scales and automatic spout connectors; discharge stations with bag-lifting frames, vibrating base plates, and dust-tight spout connections; and the conveying integration to move filled bags to storage or despatch. Both manual and semi-automated configurations are available depending on the required handling rate and available labour.
Key Features
Typical Applications
Notes
Filling stations can be supplied with automatic spout connectors to minimise product loss during bag connection.
FIBC discharge rates depend on the material flow properties: difficult materials require additional discharge aids.
Specifications
Request Equipment Information
Send us your process requirements and we will specify the right equipment, confirm availability, and provide a quotation.
