Gravity Tables
Specific gravity separation to upgrade product quality and remove light or shrivelled material.
Air-table separators that divide material by specific gravity rather than size. Used to separate dense, well-filled grain from lighter, shrivelled, or lower-quality material, improving finished product uniformity and grade.

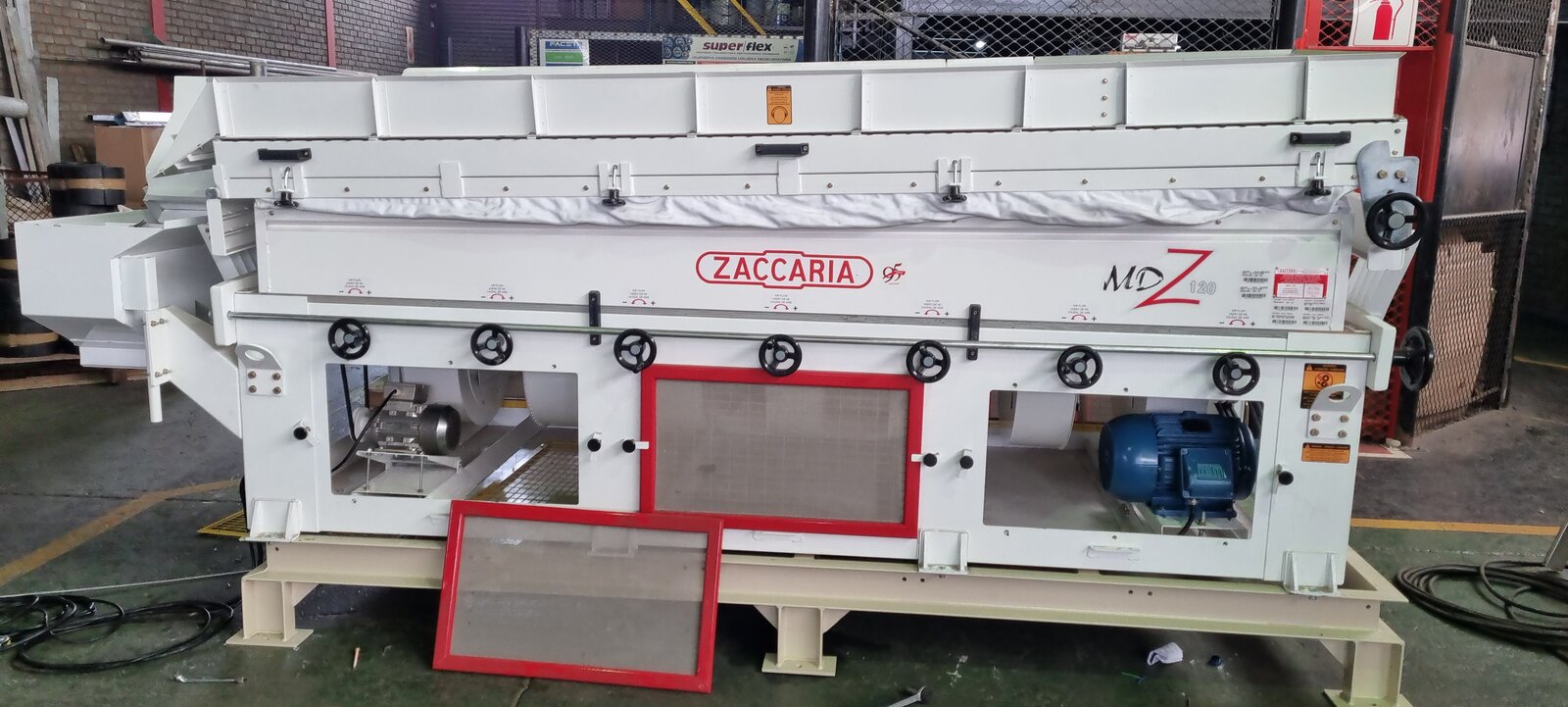

Gravity table: final density separation step that upgrades grain quality by separating light, damaged, and immature kernels
01 / 07Overview
Gravity tables (also called air tables or density separators) use a combination of vibration, a porous deck surface, and an upward airflow to stratify material by density. Dense, heavy particles sink to the deck surface and travel to one side, while light, hollow, or shrivelled particles float on the air cushion and travel to the other side. The result is a precise separation that cannot be achieved by screening alone. Gravity tables are used after preliminary screening to improve the quality of certified seed, export grain, and milled products. They are particularly effective at removing insect-damaged, frost-affected, or early-harvest shrivelled grain from a batch.
Gravity tables (also called air tables or density separators) use a combination of vibration, a porous deck surface, and an upward airflow to stratify material by density. Dense, heavy particles sink to the deck surface and travel to one side, while light, hollow, or shrivelled particles float on the air cushion and travel to the other side. The result is a precise separation that cannot be achieved by screening alone. Gravity tables are used after preliminary screening to improve the quality of certified seed, export grain, and milled products. They are particularly effective at removing insect-damaged, frost-affected, or early-harvest shrivelled grain from a batch.
Key Features
Typical Applications
Notes
Gravity tables are most effective after preliminary screening to remove gross impurities.
Multiple passes may be required for highly precise density separations.
Specifications
Request Equipment Information
Send us your process requirements and we will specify the right equipment, confirm availability, and provide a quotation.
