Dust Extraction Systems
Centralised or point-source dust extraction to maintain clean plant air and meet occupational health requirements.
Centralised or point-source dust extraction and filtration to maintain clean plant air and meet occupational health requirements. Filter unit capacity and fan selection are matched to the aspiration air volume and dust load of the plant.

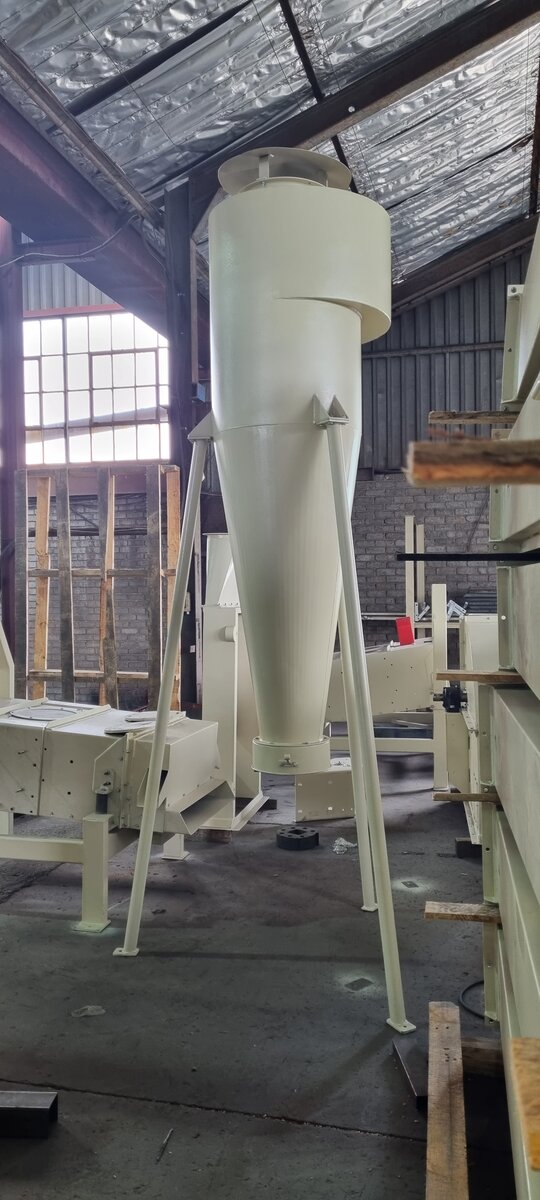

Centralised dust extraction system with bag filter unit and automatic pulse-jet cleaning
01 / 03Overview
Dust extraction systems capture dust and light material at the point of generation: conveyor transfers, cleaners, elevators, and any other material handling point: and convey the dust-laden air to a filter unit where the dust is separated and collected. Facet Engineering designs extraction systems from the aspiration point ductwork through to the filter unit, fan, and collected dust discharge. Centralised systems serve multiple aspiration points from a single filter unit and fan, reducing the number of filter units in the plant. Point-source systems place a small filter unit directly at each aspiration point for simpler installation. Bag filter and cartridge filter units are the standard filtration technology, with automatic pulse-jet cleaning to maintain filter efficiency.
Dust extraction systems capture dust and light material at the point of generation: conveyor transfers, cleaners, elevators, and any other material handling point: and convey the dust-laden air to a filter unit where the dust is separated and collected. Facet Engineering designs extraction systems from the aspiration point ductwork through to the filter unit, fan, and collected dust discharge. Centralised systems serve multiple aspiration points from a single filter unit and fan, reducing the number of filter units in the plant. Point-source systems place a small filter unit directly at each aspiration point for simpler installation. Bag filter and cartridge filter units are the standard filtration technology, with automatic pulse-jet cleaning to maintain filter efficiency.
Key Features
Typical Applications
Notes
Grain and flour dusts are combustible: explosion relief and suppression must be considered in the system design.
Filter area is calculated to maintain air-to-cloth ratio within manufacturer recommendations for the dust type.
Specifications
Request Equipment Information
Send us your process requirements and we will specify the right equipment, confirm availability, and provide a quotation.
