Destoners
Specific gravity separation to remove stones, glass, and dense contaminants from grain streams.
Specific gravity separation machines that remove stones, sand, glass, and other dense contaminants from grain streams. Protecting downstream milling and processing equipment from hard foreign material is the primary function.

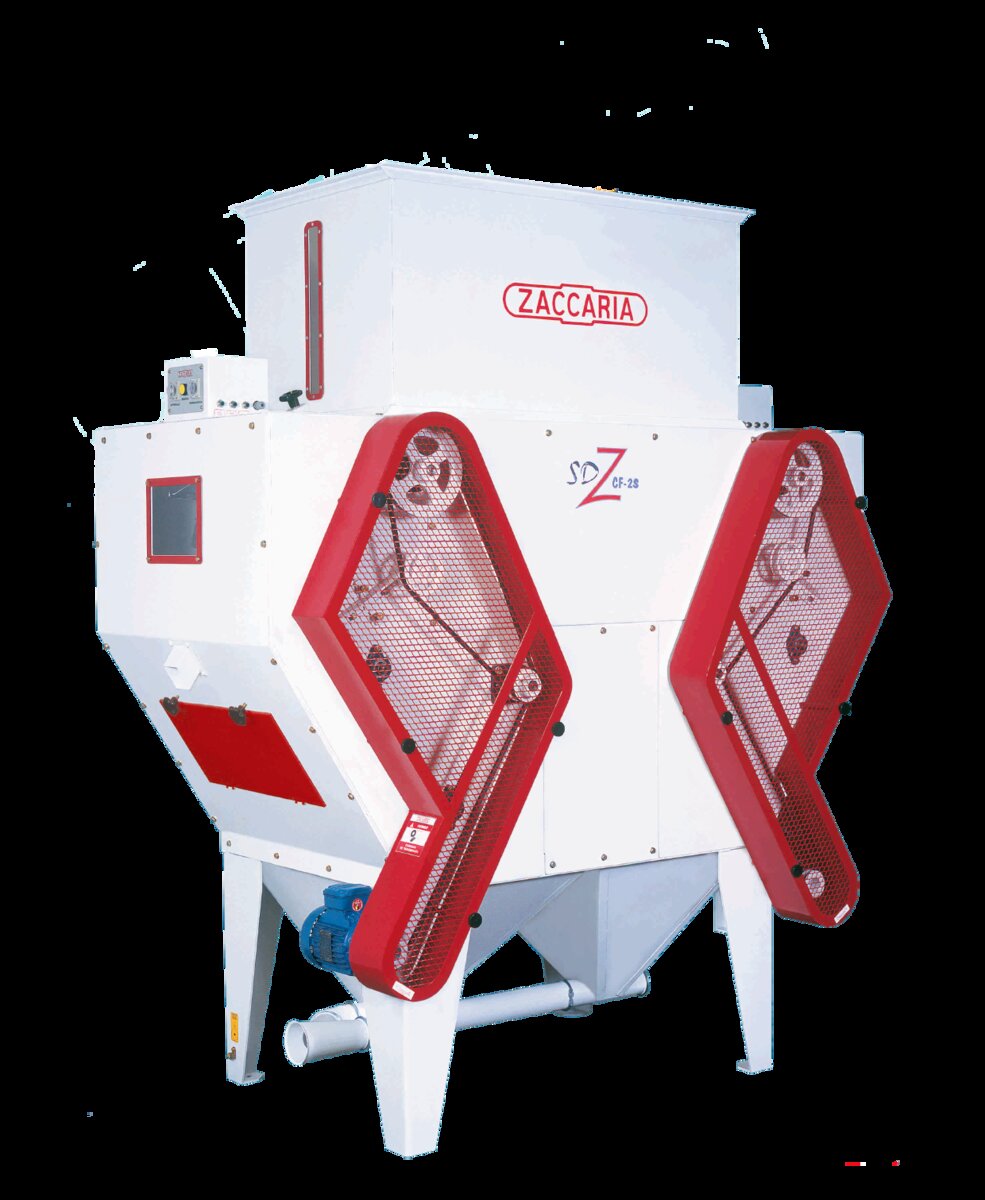

Destoner: vibrating porous deck with upward airflow separates stones, sand, and dense contaminants from the grain stream
01 / 03Overview
Destoners use the same stratification principle as gravity tables: a vibrating, porous deck with an upward airflow: but are designed specifically to remove material that is heavier than the grain rather than lighter. As the grain passes over the destoner deck, heavy contaminants such as stones, sand, glass fragments, metal clods, and dense weed seeds sink to the deck surface, while grain floats on the air cushion and exits over the light product discharge. The heavy fraction discharges separately for disposal. Destoners are positioned immediately upstream of milling, colour sorting, or other sensitive processing equipment to provide a final protection against hard foreign material that would cause damage or contamination.
Destoners use the same stratification principle as gravity tables: a vibrating, porous deck with an upward airflow: but are designed specifically to remove material that is heavier than the grain rather than lighter. As the grain passes over the destoner deck, heavy contaminants such as stones, sand, glass fragments, metal clods, and dense weed seeds sink to the deck surface, while grain floats on the air cushion and exits over the light product discharge. The heavy fraction discharges separately for disposal. Destoners are positioned immediately upstream of milling, colour sorting, or other sensitive processing equipment to provide a final protection against hard foreign material that would cause damage or contamination.
Key Features
Typical Applications
Notes
Pre-screening before the destoner improves efficiency and reduces deck wear.
Destoners are most effective when placed immediately before the most sensitive piece of downstream equipment.
Specifications
Request Equipment Information
Send us your process requirements and we will specify the right equipment, confirm availability, and provide a quotation.
The Complete Grain Cleaning Process
Solutions for Process Engineering and Material Handling
Technical Data Sheets
Destoner
Destoner specification sheet: stone and heavy contaminant separation from grain and seeds.
